IDTS -HBWR RFID Bluetooth HF Reader

Feature Function

l  ISO18000-6C, Gen2 Class 1

l  Both wireless air protocol and USB protocol

l  Support Windows, Android and iOS operation system

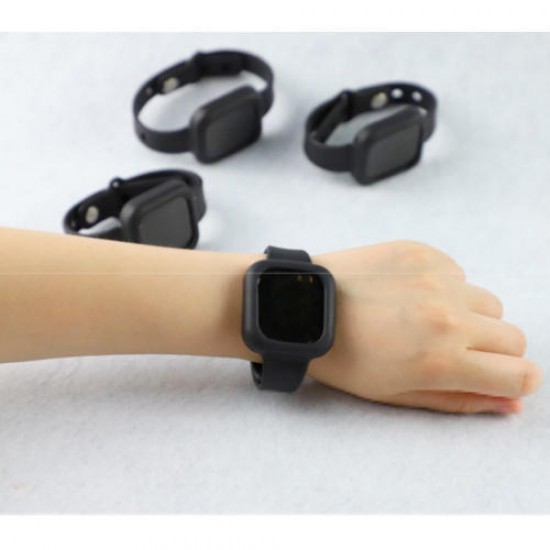

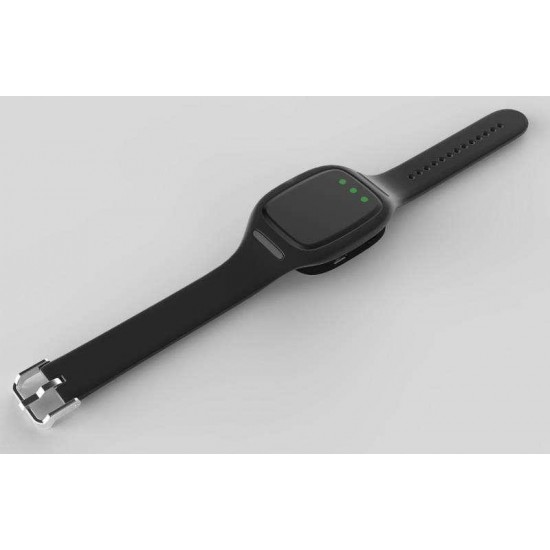

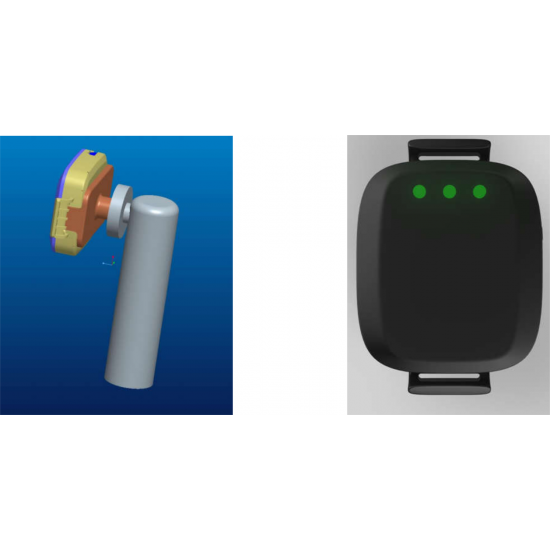

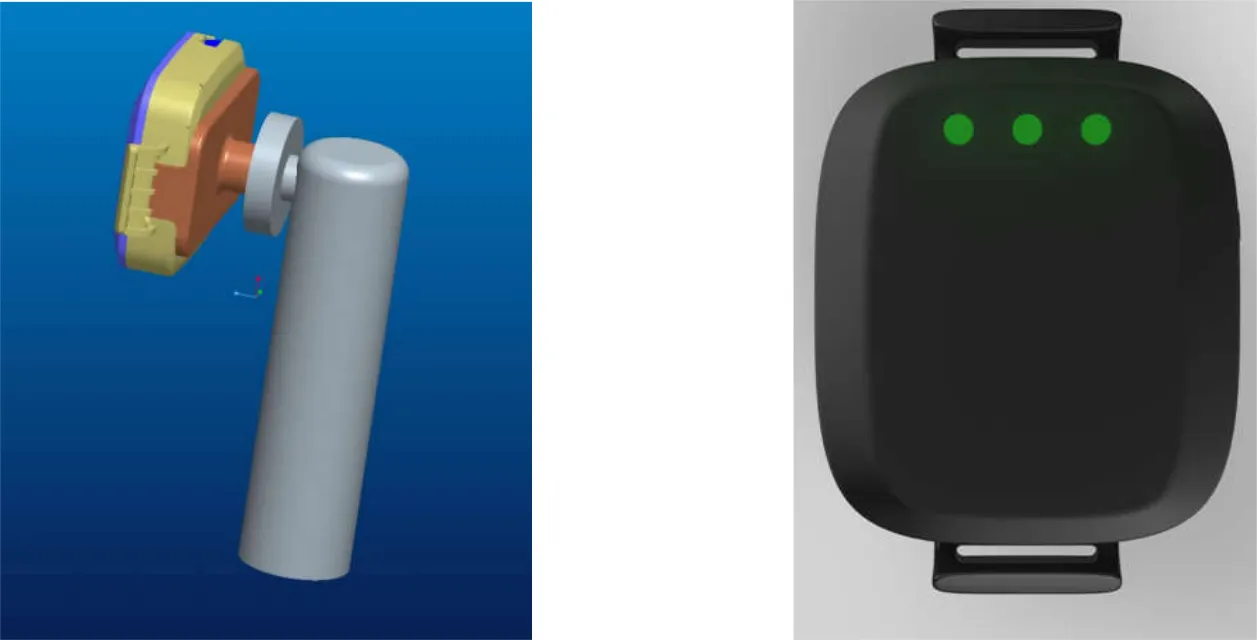

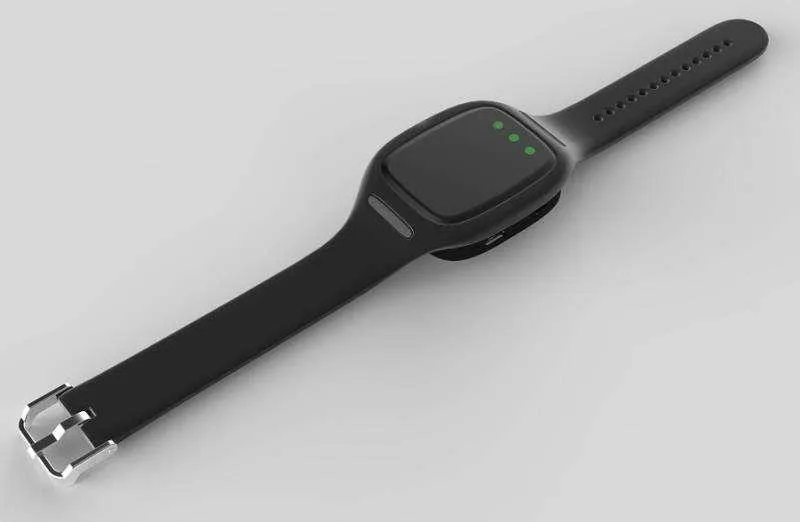

l  4 In 1 Bluetooth RFID Reader including Wristband Reader, Desktop Reader, Telescopic Rod Reader and Pendant Reader

l  Support 860-960Mhz (FCC, ETSI option)

Product Description:

UBRW02 first generation is a portable dongle UHF Bluetooth reader, which can be connected to the intelligent system platform such as IOS and Android via Bluetooth interface, and also can be used to connect traditional computer PC through the USB interface. At the same time, there is 4different kind of spare parts which are suitable for this multiple function Bluetooth RFID readers, wristband reader plus selfie stick parts, it will be easily be changed into a rod reader and an RFID writer device, which is convenient for industrial inventory/tracking purpose. Normally in the industrial field, it will require special reader equipment in order to read or write electronic labels from the warehouse, industry area. Multi-function Bluetooth reader considered more user experience in application and expanding a new idea to the RFID system engineer with the miniaturization, low cost and lead any civilian to use UHF reader, it promote better the real popularization of the RFID application system.

Parameter Specification

 1.  Brand Name: IDentium

 2.  Part No: UBRW02

 3.  Support UHF tag protocol ISO18000-6C

 4.  Support operation systems: Windows、IOS、Android

 5.  Communication interface： BLE4.0、USB

 6.  Reading distance：50cm（depend on tag size）

 7.  Work time: continuous working 3 hours, query over 30 000 times.

 8.  Material: ABS+PC engineer plastic.

 9.  Battery capacity：550mA

 10.  Charge method: USB 5V/0.5A, charge time 2 hours

 11.  LED Indicator: power indicator, connection indicator, working status indicator.
